netBooter B Series PDU

Basic outlet control over your local network

The netBooter B Series offers straightforward, reliable outlet switching through local network access or a serial console interface. Ideal for on-site environments that need essential power control without additional complexity.
Request a Demo KitRequest a QuoteDatasheet
Key Features
Individual Outlet Control
Remotely power cycle, enable, or disable each power outlet independently, giving you precise control over every connected device.
Auto-Detect and Recover Unresponsive Equipment
Monitor remote devices with AutoPing. Automatically power cycle an outlet when devices fail to respond to pings.
Manage Outlets over the Network

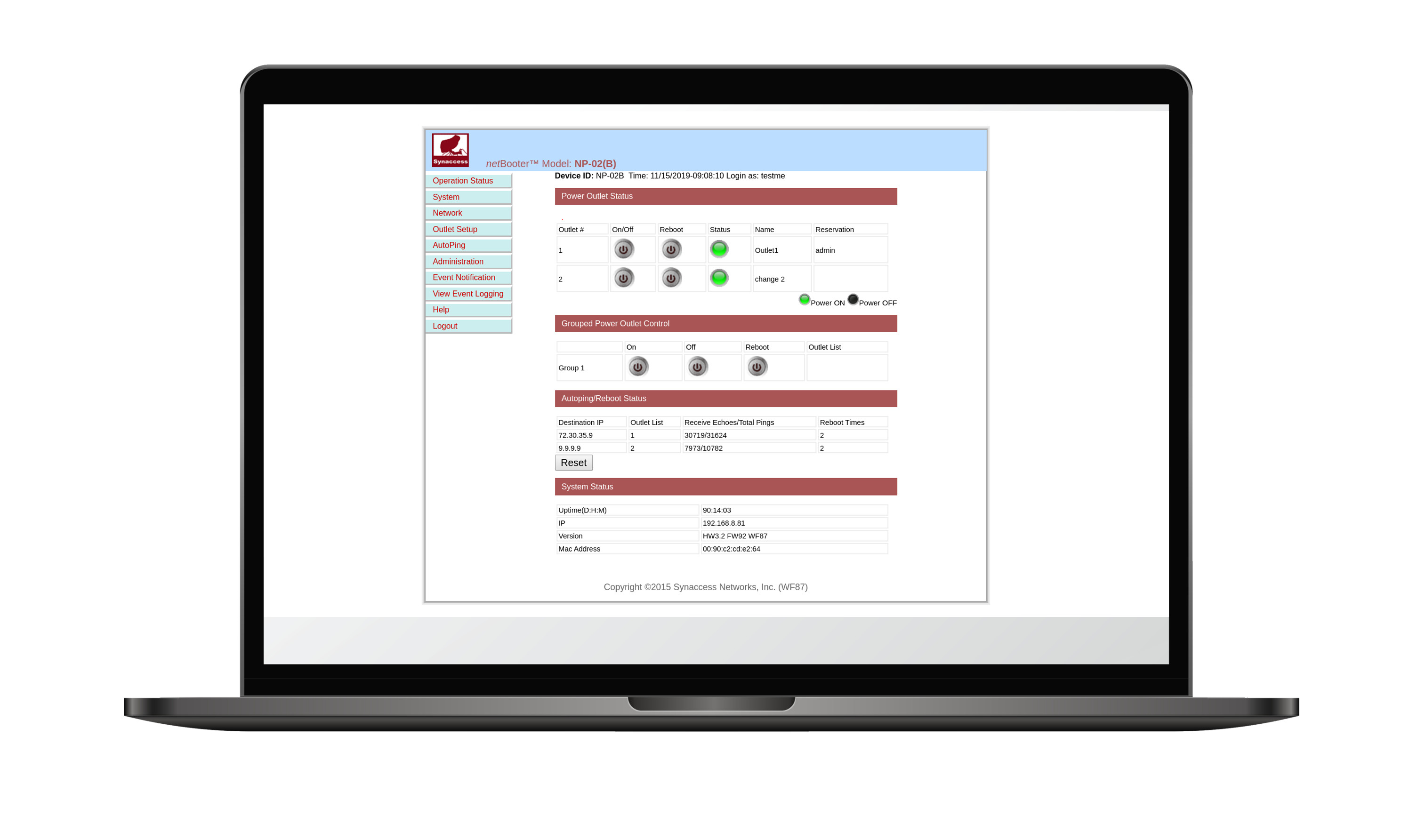

Access PDUs directly through a HTTP web interface for outlet control
Serial Port Access via USB or DB9
Access PDUs locally via serial port, with built in USB (FTDI based) or DB9 RS-232 interfaces
Applications
Small Equipment Sets
  • Modems, gateways, media players
  • Simple reboot
  • Local-network or serial port access only
Budget Deployments
  • Cost-sensitive rollout projects
  • Basic scheduling and power cycling
Manufacturing
  • Machine reset and tool control
  • Production bench power switching
  • Firmware upgrade power cycling

Technical Specifications

Input
Input
IEC 320 C14
Input Voltage Options
100-120V, 60Hz  or
100-240V, 50-60Hz
Max Input Current
15A (12A derated)
Phase
Single-Phase
Input Measurement
None
Output
Outlet Voltage Options
100-120V or 100-240V
Outlet Receptable Options
NEMA 5-15R or IEC 320 C13
Outlet Count Options
2, 5
Overload Protection
None
Outlet Measurement
None
Outlet Switching
Individual outlet switching
Access, Communication, and Security
Networking Protocols
HTTP, SMTP, Telnet, DHCP, NTP, BootP
Network Interface
10 Base-T Half Duplex (RJ-45)
Encryption
None
User Access Management
Up to 3 local user accounts with password protection
Serial Communication Options
DB9 RS-232 or USB
Front Panel
LED indicators for individual outlet on/off status

1 LED indicator for PDU On/ Off status

1 LED indicator for Network status
Sensors
None
Physical
Form Factor Options

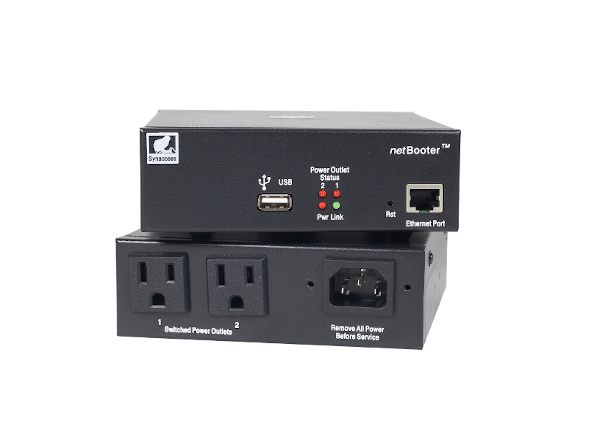

Compact (2 outlet)
1U Strip (5 outlet)
Dimensions
Compact: 6.2 x 5.4 x 1.75 1U
Strip: 19” x 2.125” x 1.75”
Operating Temperature
-5C to 60 C
Storage Temperature
-25C to 65 C
Humidity
5-95%, non-condensing

Simple, Reliable Power Distribution

Per-Outlet Control over Local Network

Toggle outlets individually via local network or serial console to reboot devices or recover unresponsive equipment. Quickly address issues without requiring physical access.

Auto-Detect and Recover Unresponsive Equipment

Monitor remote devices with AutoPing. Automatically take action when an outlet when a device stops responding to pings. Send alerts via email or perform outlet reboots to restore functionality.

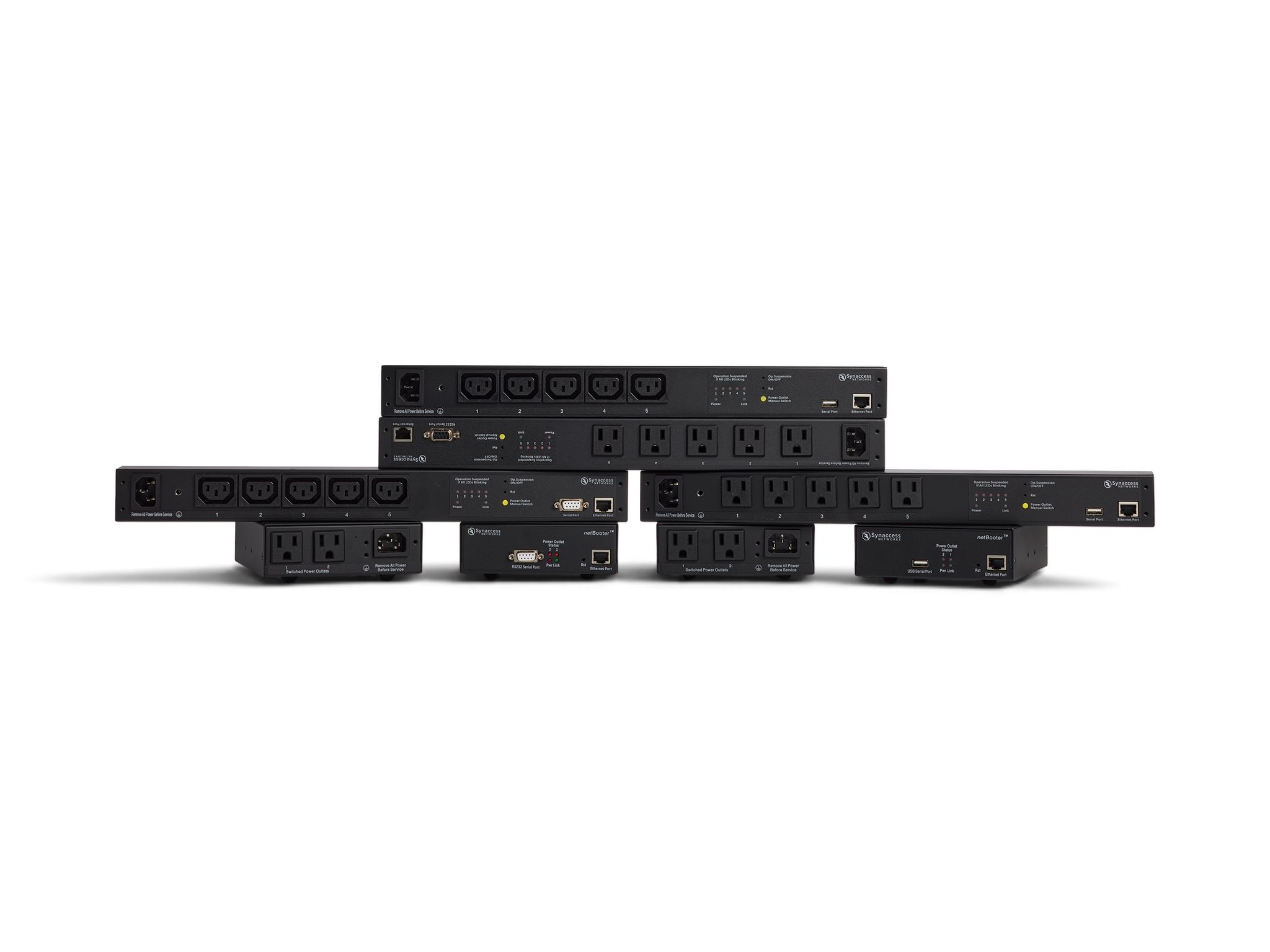

Model Configurations

SKU
Form Factor
Outlets
Inlet Plug
Outlet Type(s)
Voltage
Max Amps
Serial Port
NP-02B-USB
Compact
2
IEC 320 C14
NEMA 5-15R
100-120V
13A (10.4A)
USB
NP-02B-DB9
Compact
2
IEC 320 C14
NEMA 5-15R
100-120V
13A (10.4A)
DB9
NP-02BH-USB
Compact
2
IEC 320 C14
IEC 320 C13
100-240V
13A (10.4A)
USB
NP-02BH-DB9
Compact
2
IEC 320 C14
IEC 320 C13
100-240V
13A (10.4A)
DB9
NP-05B-USB
1U Strip
5
IEC 320 C14
NEMA 5-15R
100-120V
15A (12A)
USB
NP-05B-DB9
1U Strip
5
IEC 320 C14
NEMA 5-15R
100-120V
15A (12A)
DB9
NP-05BH-USB
1U Strip
5
IEC 320 C14
IEC 320 C13
100-240V
15A (12A)
USB
NP-05BH-DB9
1U Strip
5
IEC 320 C14
IEC 320 C13
100-240V
15A (12A)
DB9
